Products
Merlok offers a comprehensive range of products and services that meet oil and gas companies
Through deliver a wide range of seamless tubes for line pipe, Flanges and fittings to be used in the most demanding conditions.
Products are manufactured in accordance to particular project specifications and national or international standards.
In alliance with a group of worldwide coaters, Merlok offers comprehensive coating solutions for oil and gas pipelines and other tubular applications.
- A106
- X42
- X52
- X60
- X65
- X70

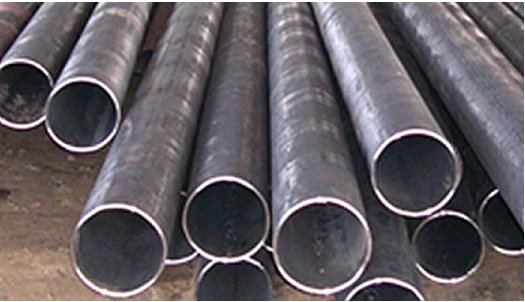

A106 PIPE
Merlok offers a wide-range of A106 pipe products. With a seamless stocking range of 1" – 24" outside diameter, our seamless heavy wall A106 pipe inventory is among the most diverse in ……. And because we shop with many seamless producers around the world, we can offer you the bottom line price from the mills you trust.
PRODUCT SPEC GUIDE:
| C(max) | Mn | P(max) | S(max) | Si(min) | Cu*(max) | Ni*(max) | Cr(max) | Mo*(max) | V*(max) | |
|---|---|---|---|---|---|---|---|---|---|---|
| Grade A: | .25 | .95 | .05 | .045 | .40 | .40 | .40 | .15 | .08 | .08 |
| Grade B: | .30 | 1.20 | .05 | .045 | .40 | .40 | .40 | .15 | .08 | .08 |
| Grade C: | .30 | 1.20 | .05 | .045 | .40 | .40 | .40 | .15 | .08 | .08 |

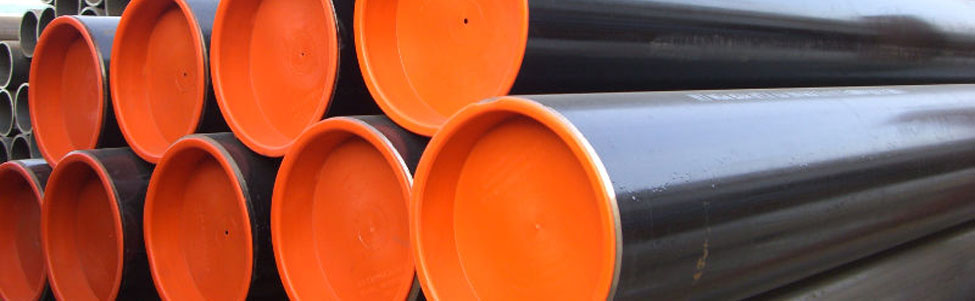

API LINE PIPE
Merlok offers a wide-range of API line pipe products. Our worldwide network of API line pipe suppliers allows us to offer exotic heavy X-grades (X42, X46, X52, X56, X60, X65, X70) from an assortment of producers, giving our customers the options they need to complete their projects. Because of our relationships with mills both domestic and foreign, our size range is virtually limitless. Contact us today for your API line pipe needs.
PRODUCT SPEC GUIDE:
API5LBPSL1
| Composition % | ||||
|---|---|---|---|---|
| C | Mn | P | S | |
| Chemical Requirements (Seamless) | .28 | 1.20 | .03 | .03 |
| Chemical Requirements (Welded) | .26 | 1.35 | .035 | .03 |
API5LBPSL2
| C | Mn | P | S | Si | V | Nb | Ti | |
|---|---|---|---|---|---|---|---|---|
| Chemical Requirements (Seamless) | .24 | 1.20 | .025 | .015 | .04 | .06 | .05 | .04 |
| Chemical Requirements (Welded) | .22 | 1.20 | .025 | .015 | .05 | .04 | .05 | .04 |
Charpy V-Notch Absorbed Endery Requirements for PSL2
| Minimum Requirements | |||||||
|---|---|---|---|---|---|---|---|
| J (ft-lbf) | |||||||
| Grade | |||||||
| OD (inches) | up to X60 | X60 - X65 | X65 - X70 | X70 - X80 | X80 - X90 | X90 - X100 | X100 - X120 |
| up to 20 | 27 (20) | 27 (20) | 27 (20) | 40 (30) | 40 (30) | 40 (30) | 40 (30) |
| 20 - 30 | 27 (20) | 27 (20) | 27 (20) | 40 (30) | 40 (30) | 40 (30) | 40 (30) |
| 30 - 36 | 40 (30) | 40 (30) | 40 (30) | 40 (30) | 40 (30) | 54 (40) | 54 (40) |
| 36 - 48 | 40 (30) | 40 (30) | 40 (30) | 40 (30) | 40 (30) | 54 (40) | 68 (50) |
| 48 - 56 | 40 (30) | 54 (40) | 40 (30) | 54 (40) | 54 (40) | 68 (50) | 81 (60) |
| 56 - 84 | 40 (30) | 54 (40) | 68 (50) | 68 (50) | 81 (60) | 95 (70) | 108 (80) |
| API 5L X42 | PSL1 | PSL2 |
|---|---|---|
| Minimum Yield Strength: | 42,000 psi | 42,000 psi |
| Maximum Yield Strength: | None | 72,000 psi |
| Minimum Tensile Strength: | 60,000 psi | 60,000 psi |
| Maximum Tensile Strength | None | 110,000 psi |
Notes: This is a standard line pipe grade specifiedin API (American Petroleum Institute) specification 5L.
| API 5L X52 | PSL1 | PSL2 |
|---|---|---|
| Minimum Yield Strength: | 52,000 psi | 52,000 psi |
| Maximum Yield Strength: | None | 77,000 psi |
| Minimum Tensile Strength: | 60,000 psi | 60,000 psi |
| Maximum Tensile Strength | None | 110,000 psi |
Notes: This is a standard line pipe grade specifiedin API (American Petroleum Institute) specification 5L.
| API 5L X60 | PSL1 | PSL2 |
|---|---|---|
| Minimum Yield Strength: | 60,000 psi | 60,000 psi |
| Maximum Yield Strength: | None | 82,000 psi |
| Minimum Tensile Strength: | 75,000 psi | 75,000 psi |
| Maximum Tensile Strength | None | 110,000 psi |
Notes: This is a standard line pipe grade specifiedin API (American Petroleum Institute) specification 5L.
| API 5L X65 | PSL1 | PSL2 |
|---|---|---|
| Minimum Yield Strength: | 65,000 psi | 65,000 psi |
| Maximum Yield Strength: | None | 87,000 psi |
| Minimum Tensile Strength: | 77,000 psi | 77,000 psi |
| Maximum Tensile Strength | None | 110,000 psi |
Notes: This is a standard line pipe grade specifiedin API (American Petroleum Institute) specification 5L.
| API 5L X70 | PSL1 | PSL2 |
|---|---|---|
| Minimum Yield Strength: | 70,000 psi | 70,000 psi |
| Maximum Yield Strength: | None | 90,000 psi |
| Minimum Tensile Strength: | 82,000 psi | 82,000 psi |
| Maximum Tensile Strength | None | 110,000 psi |
Notes: This is a standard line pipe grade specifiedin API (American Petroleum Institute) specification 5L.

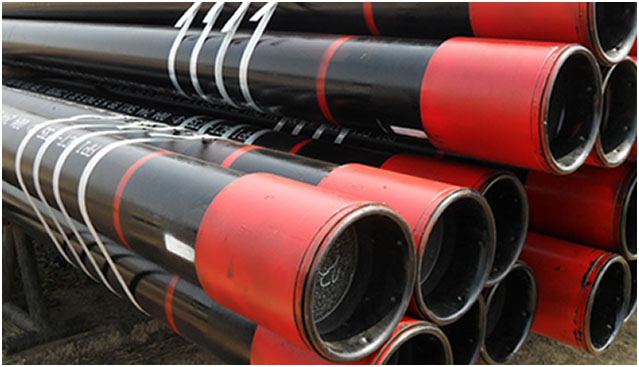

API Casing
Casing is a large-diameter pipe that serves as the structural retainer for the walls of oil and gas wells, or well bore. It is inserted into a well bore and cemented in place to protect both subsurface formations and the wellbore from collapsing and to allow drilling fluid to circulate and extraction to take place. Steel Casing Pipes have smooth wall & minimum yield strength of 35,000 psi

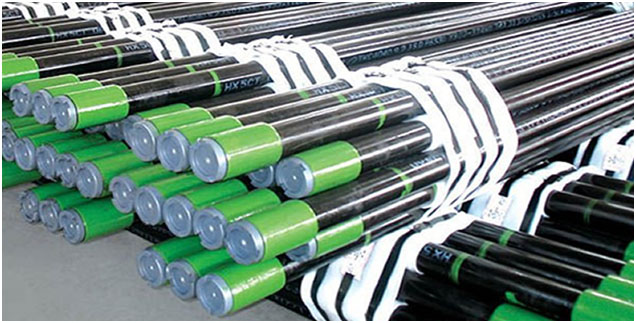

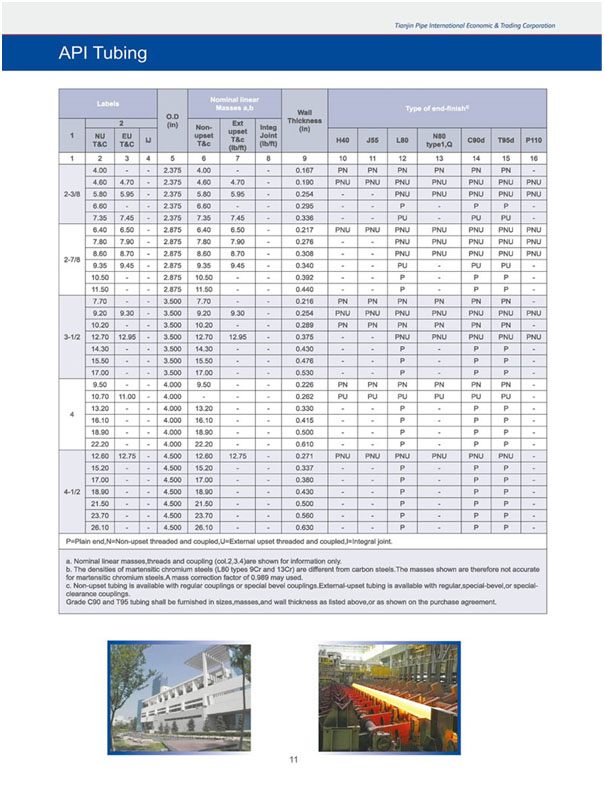

API Tubing
casing tubing, drill pipe and drill collar are a major portion of OCTG Casings are pipes that support wall of oil and gas well and mainly divided into 3 kinds, the surface, protection and production casing. Tubing is a special pipe which is installed in production casing after well cementing to let oil or gas gush to the ground. Merlok can supply all tubing's, casings and drill pipe of the API standards. In addition, it has also developed many kinds of tubing's and casings of non-API standards, forming its own TP series to meet different requirements and offer more selections for the customers

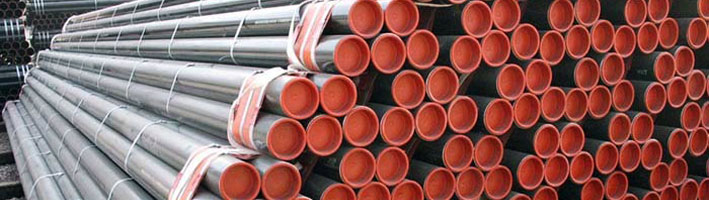

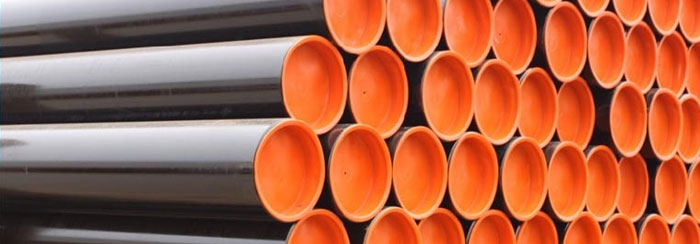

Seamless Line Pipe
Line pipes Supplied by Merlok are intended for the transmission of petroleum, natural gas and other gas&fluids. Products include over a hundred specifications for the various applications in regular, pressure, submarine, low-temperature, high-temperature corrosion-resistant and other pipelines. Merlok can supply products according to international standards such as API 5L, ASTM, ASME, JIS, DIN, EN, etc. And it also can meet the customer's special specification by mutually agreement.
| Nominal Diameter | Outside Diameter | Schedule | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MM | inch | MM | inch | 20 | 30 | STD | 40 | 60 | XS | 80 | 100 | 120 | 140 | 160 | XXS |
| 50 | 2 | 60.3 | 2.375 | 3.91 5.44 |
3.91 5.44 |
5.54 7.48 |
5.54 7.48 |
8.74 11.11 |
11.07 13.44 |
||||||
| 65 | 2 1/2 |
73.0 | 2.875 | 5.16 8.63 |
5.16 8.63 |
7.01 11.41 |
7.01 11.41 |
9.53 14.92 |
14.02 20.39 |
||||||
| 80 | 3 | 88.9 | 3.500 | 5.49 11.29 |
5.49 11.29 |
7.62 15.27 |
7.62 15.27 |
11.13 21.35 |
15.24 27.68 |
||||||
| 90 | 3 12 |
101.6 | 4.000 | 5.74 11.29 |
5.49 13.57 |
8.08 18.63 |
8.08 18.63 |
||||||||
| 100 | 4 | 114.3 | 4.500 | - | 6.02 16.07 |
6.02 16.07 |
8.56 22.32 |
8.56 22.32 |
11.13 |
13.49 33.54 |
17.12 41.03 |
||||
| 125 | 5 | 114.3 | 5.563 | - | 6.55 21.77 |
6.55 21.77 |
9.53 30.97 |
9.53 30.97 |
12.70 40.28 |
15.88 49.11 |
19.05 57.43 |
||||
| 150 | 6 | 168.3 | 6.625 | - | 7.11 28.26 |
7.11 28.26 |
10.97 42.56 |
10.97 42.56 |
14.57 54.20 |
18.26 67.56 |
21.95 79.22 |
||||
| 200 | 8 | 219.1 | 8.625 | 6.35 33.31 |
- 7.04 36.81 |
8.18 42.55 |
8.18 42.55 |
10.31 53.08 |
12.64 64.64 |
12.64 64.64 |
15.09 75.92 |
18.26 90.44 |
20.62 100.92 |
23.01 111.27 |
22.23 107.92 |
| 250 | 10 | 273.1 | 10.750 | 6.35 41.77 |
- 6.04 36.81 |
9.27 60.32 |
9.27 60.32 |
12.70 81.55 |
12.70 81.55 |
15.09 96.01 |
18.26 114.75 |
21.44 133.06 |
25.40 155.15 |
28.58 172.33 |
25.40 155.15 |
| 300 | 12 | 323.9 | 12.750 | 6.35 49.73 |
- 8.38 65.20 |
9.53 73.88 |
10.31 79.73 |
12.70 97.46 |
17.48 132.08 |
21.44 159.91 |
25.40 186.97 |
25.40 186.97 |
28.58 208.14 |
33.32 238.76 |
225.4 186.97 |
| 350 | 14 | 355.6 | 14.000 | 7.92 67.90 |
- 9.53 81.33 |
9.53 81.33 |
11.13 94.55 |
15.09 126.71 |
12.70 107.39 |
19.05 158.10 |
23.83 194.96 |
27.79 224.65 |
31.75 253.56 |
335.71 281.70 |
|
| 400 | 16 | 406.4 | 16.000 | 7.92 77.83 |
- 9.53 93.27 |
9.53 93.27 |
12.70 123.30 |
16.66 160.12 |
12.70 123.30 |
21.44 203.53 |
26.19 245.56 |
30.96 286.64 |
36.53 333.19 |
40.49 365.35 |
|
| 450 | 18 | 457.2 | 18.000 | 7.92 87.71 |
v 11.13 122.38 |
9.53 105.16 |
14.27 155.80 |
19.05 205.74 |
12.70 139.15 |
23.88 254.55 |
29.36 309.62 |
34.93 363.56 |
39.67 408.26 |
45.24 459.37 |
|
| 500 | 20 | 508.0 | 20.000 | 9.53 117.15 |
- 12.70 155.12 |
9.53 117.15 |
15.09 183.42 |
20.62 247.83 |
12.70 155.12 |
26.19 311.17 |
32.54 381.53 |
38.10 441.49 |
44.45 508.11 |
50.01 564.81 |
|
| 550 | 22 | 558.0 | 22.000 | 9.53 129.13 |
- 12.70 171.09 |
9.53 129.13 |
22.23 294.25 |
12.70 171.09 |
28.58 373.83 |
34.93 451.42 |
41.28 527.02 |
47.63 600.63 |
53.98 672.26 |
||
| 600 | 24 | 609.6 | 24.000 | 9.53 141.12 |
14.27 209.64 |
9.53 141.12 |
17.48 255.41 |
24.61 355.26 |
12.70 187.06 |
30.96 442.08 |
38.89 547.71 |
46.02 640.03 |
52.37 720.15 |
59.54 808.22 |
|
| 650 | 26 | 660.4 | 26.000 | 12.70 202.72 |
9.53 152.87 |
12.70 202.72 |
|||||||||
| 700 | 28 | 711.2 | 28.000 | 12.70 218.69 |
15.88 271.21 |
9.53 164.85 |
12.70 218.69 |
||||||||

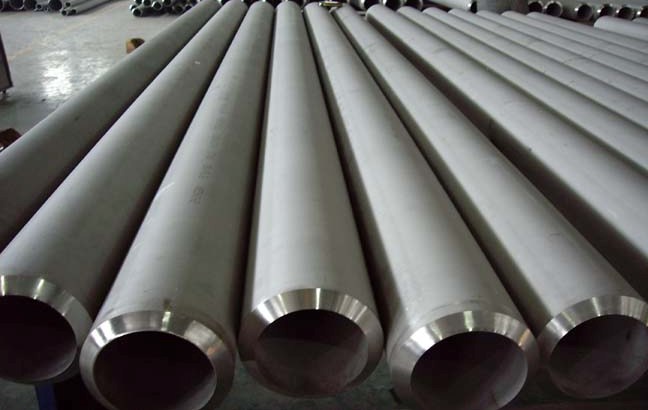

Welded Pipes
Electric Resistance Welded (ERW) steel pipes are available in various wall thicknesses, sizes, diameters, thickness, steel grades, nominal bores (NB) and dimensions. Suitable for both light duties and extra heavy duties, our ERW steel pipes are used in highly demanding work environments of industries like petrochemical, oil & gas, infrastructure, construction, automobile, chemical, etc. These ERW steel pipes are conforming to various quality standards. Our ERW steel pipes find wide application in industrial water lines, plant piping, agriculture, irrigation, gas pipelines and oil pipelines.
Welded pipe (pipe manufactured with a weld) is a tubular product made out of flat plates, known as skelp, that are formed, bent and prepared for welding. The most popular process for large diameter pipe uses a longitudinal seam weld.Spiral welded pipe is an alternative process, spiral weld construction allows large diameter pipe to be produced from narrower plates or skelp. The defects that occur in spiral welded pipe are mainly those associated with the SAW weld, and are similar in nature to those for longitudinally welded SAW pipe. Electric Resistance Welded (ERW) and High Frequency Induction (HFI) Welded Pipe, originally this type of pipe, which contains a solid phase butt weld, was produced using resistance heating to make the longitudinal weld (ERW). But most pipe mills now use high frequency induction heating (HFI) for better control and consistency. However, the product is still often referred to as ERW pipe, even though the weld may have been produced by the HFI process.
We may also place orders with our suppliers for the most demanding of client installations such as pipes for high temperature, low temperature, high pressure or sour service environments for offshore or onshore applications.
All supplied products are manufactured according to international standards such as API, ASTM, ANSI, ISO and DIN pipe.
